ASMLib사용 ASM 디스크 그룹 생성 및 추가

버추얼박스 사용

vboxmanage createmedium --filename IMSI1.vdi --size 1024 --format VDI --variant Fixed
vboxmanage createmedium --filename IMSI2.vdi --size 1024 --format VDI --variant Fixed
vboxmanage createmedium --filename IMSI3.vdi --size 1024 --format VDI --variant Fixed



공유 및  서버에 할당
vboxmanage modifymedium IMSI1.vdi --type shareable
vboxmanage modifymedium IMSI2.vdi --type shareable
vboxmanage modifymedium IMSI3.vdi --type shareable

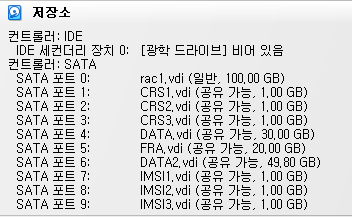

공유볼륨 IMSI1~3 추가

[root@rac2 ~]# fdisk -l

Disk /dev/sdj: 1073 MB, 1073741824 bytes, 2097152 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes

Disk /dev/sdi: 1073 MB, 1073741824 bytes, 2097152 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes

Disk /dev/sdh: 1073 MB, 1073741824 bytes, 2097152 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes

fdisk /dev/sdh

[root@rac2 ~]# fdisk /dev/sdh
Welcome to fdisk (util-linux 2.23.2).

Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.

Device does not contain a recognized partition table
Building a new DOS disklabel with disk identifier 0x853b6083.

Command (m for help): n
Partition type:
   p   primary (0 primary, 0 extended, 4 free)
   e   extended
Select (default p): p
Partition number (1-4, default 1):
First sector (2048-2097151, default 2048):
Using default value 2048
Last sector, +sectors or +size{K,M,G} (2048-2097151, default 2097151):
Using default value 2097151
Partition 1 of type Linux and of size 1023 MiB is set

Command (m for help): w
The partition table has been altered!

Calling ioctl() to re-read partition table.
Syncing disks.
.

.

.

fdisk /dev/sdi
fdisk /dev/sdj

ASM 디스크 생성

[root@rac2 ~]# oracleasm createdisk  IMSI1 /dev/sdh1

Writing disk header: done
Instantiating disk: done
[root@rac2 ~]# oracleasm createdisk  IMSI2 /dev/sdi1
Writing disk header: done
Instantiating disk: done
[root@rac2 ~]# oracleasm createdisk  IMSI3 /dev/sdj1
Writing disk header: done
Instantiating disk: done

-- RAC 모든 노드에서 실행1,2
[root@rac1 ~]# oracleasm scandisks
Reloading disk partitions: done
Cleaning any stale ASM disks...
Scanning system for ASM disks...
Instantiating disk "IMSI3"
Instantiating disk "IMSI2"
Instantiating disk "IMSI1"
[root@rac2 ~]# oracleasm listdisks
CRS1
CRS2
CRS3
DATA
DATA2
FRA
IMSI1
IMSI2
IMSI3

[root@rac2 ~]# kfod ds=true disks=all group=diskgroup
--------------------------------------------------------------------------------
 Disk          Size Path                                    Disk Group    User     Group
================================================================================
   1:       1023 MB /dev/oracleasm/disks/CRS1                CRS          oracle   asmadmin
   2:       1023 MB /dev/oracleasm/disks/CRS2                CRS          oracle   asmadmin
   3:       1023 MB /dev/oracleasm/disks/CRS3                CRS          oracle   asmadmin
   4:      30719 MB /dev/oracleasm/disks/DATA                DATA         oracle   asmadmin
   5:      50999 MB /dev/oracleasm/disks/DATA2               DATA         oracle   asmadmin
   6:      20479 MB /dev/oracleasm/disks/FRA                 FRA          oracle   asmadmin
   7:       1023 MB /dev/oracleasm/disks/IMSI1               #            oracle   asmadmin
   8:       1023 MB /dev/oracleasm/disks/IMSI2               #            oracle   asmadmin
   9:       1023 MB /dev/oracleasm/disks/IMSI3               #            oracle   asmadmin
KFOD returned no data

디스크그룹 생성

/dev/oracleasm/disks/IMSI1 , /dev/oracleasm/disks/IMSI2 2개 추가
SQL> create diskgroup IMSI external redundancy disk '/dev/oracleasm/disks/IMSI1','/dev/oracleasm/disks/IMSI2';
Diskgroup created.

SQL> set linesize 200
SQL> set pages 100
SQL> col disk_group_name for a15
SQL> col disk_path for a40
SQL> col disk_name for a20
SQL> col disk_fail_group for a20
SQL>
SQL> SELECT
  2          NVL(a.name, '[CANDIDATE]') disk_group_name ,
  3          b.path                     disk_path       ,
  4          b.name                     disk_name       ,
  5          b.failgroup                disk_fail_group ,
  6          b.os_mb
  7  FROM
  8          v$asm_diskgroup a,
  9          v$asm_disk      b
 10  WHERE
 11          a.group_number(+) = b.group_number
 12  ORDER BY
 13          a.name,
 14          b.name,
 15          b.path;

DISK_GROUP_NAME DISK_PATH                                DISK_NAME            DISK_FAIL_GROUP           OS_MB
--------------- ---------------------------------------- -------------------- -------------------- ----------
CRS             /dev/oracleasm/disks/CRS1                CRS_0000             CRS_0000                   1023
CRS             /dev/oracleasm/disks/CRS3                CRS_0001             CRS_0001                   1023
CRS             /dev/oracleasm/disks/CRS2                CRS_0002             CRS_0002                   1023
DATA            /dev/oracleasm/disks/DATA2               DATA2                DATA2                     50999
DATA            /dev/oracleasm/disks/DATA                DATA_0000            DATA_0000                 30719
FRA             /dev/oracleasm/disks/FRA                 FRA_0000             FRA_0000                  20479
IMSI            /dev/oracleasm/disks/IMSI1               IMSI_0000            IMSI_0000                  1023
IMSI            /dev/oracleasm/disks/IMSI2               IMSI_0001            IMSI_0001                  1023
[CANDIDATE]     /dev/oracleasm/disks/IMSI3                                                               1023

9 rows selected.

디스크그룹에 추가

SQL> alter diskgroup IMSI add disk '/dev/oracleasm/disks/IMSI3' rebalance power 1024;
SQL> set linesize 200
SQL> set pages 100
SQL> col disk_group_name for a15
SQL> col disk_path for a40
SQL> col disk_name for a20
SQL> col disk_fail_group for a20
SQL>
SQL> SELECT
  2          NVL(a.name, '[CANDIDATE]') disk_group_name ,
  3          b.path                     disk_path       ,
  4          b.name                     disk_name       ,
  5          b.failgroup                disk_fail_group ,
  6          b.os_mb
  7  FROM
  8          v$asm_diskgroup a,
  9          v$asm_disk      b
 10  WHERE
 11          a.group_number(+) = b.group_number
 12  ORDER BY
 13          a.name,
 14          b.name,
 15          b.path;

DISK_GROUP_NAME DISK_PATH                    DISK_NAME    DISK_FAIL_GROUP        OS_MB
--------------- ---------------------------- ------------ ----------------- ----------
CRS             /dev/oracleasm/disks/CRS1    CRS_0000     CRS_0000                1023
CRS             /dev/oracleasm/disks/CRS3    CRS_0001     CRS_0001                1023
CRS             /dev/oracleasm/disks/CRS2    CRS_0002     CRS_0002                1023
DATA            /dev/oracleasm/disks/DATA2   DATA2        DATA2                  50999
DATA            /dev/oracleasm/disks/DATA    DATA_0000    DATA_0000              30719
FRA             /dev/oracleasm/disks/FRA     FRA_0000     FRA_0000               20479
IMSI            /dev/oracleasm/disks/IMSI1   IMSI_0000    IMSI_0000               1023
IMSI            /dev/oracleasm/disks/IMSI2   IMSI_0001    IMSI_0001               1023
IMSI            /dev/oracleasm/disks/IMSI3   IMSI_0002    IMSI_0002               1023

9 rows selected.

[root@rac2 ~]# crsctl stat res -t
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.LISTENER.lsnr
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.chad
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.net1.network
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.ons
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        ONLINE  OFFLINE                               STABLE
ora.CRS.dg(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.DATA.dg(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.FRA.dg(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.IMSI.dg(ora.asmgroup)
      1        OFFLINE OFFLINE                               STABLE
      2        OFFLINE OFFLINE                               STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.LISTENER_SCAN1.lsnr
      1        ONLINE  ONLINE       rac1                     STABLE
ora.LISTENER_SCAN2.lsnr
      1        ONLINE  ONLINE       rac2                     STABLE
ora.LISTENER_SCAN3.lsnr
      1        ONLINE  ONLINE       rac2                     STABLE
ora.asm(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     Started,STABLE
      2        ONLINE  ONLINE       rac2                     Started,STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.asmnet1.asmnetwork(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        OFFLINE OFFLINE                               STABLE
.............................................
--------------------------------------------------------------------------------
[root@rac2 ~]# crsctl stat res -t

--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        ONLINE  OFFLINE                               STABLE
ora.CRS.dg(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.DATA.dg(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.FRA.dg(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        OFFLINE OFFLINE                               STABLE
.............................................
--------------------------------------------------------------------------------
[root@rac1 ~]# srvctl start diskgroup -g IMSI -n rac1

완료

[root@rac2 ~]# crsctl stat res -t
--------------------------------------------------------------------------------
Name           Target  State        Server                   State details
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.LISTENER.lsnr
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.chad
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.net1.network
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
ora.ons
               ONLINE  ONLINE       rac1                     STABLE
               ONLINE  ONLINE       rac2                     STABLE
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.ASMNET1LSNR_ASM.lsnr(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        ONLINE  OFFLINE                               STABLE
ora.CRS.dg(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.DATA.dg(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.FRA.dg(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
      3        OFFLINE OFFLINE                               STABLE
ora.IMSI.dg(ora.asmgroup)
      1        ONLINE  ONLINE       rac1                     STABLE
      2        ONLINE  ONLINE       rac2                     STABLE
